LOTEC Smartlight Intelligent Wireless Street Lighting System.
Lotec Smartlight® is an easy to install and operate LoRaWAN based wireless Smart Street Lighting solution that provides energy saving, central control and monitor features.
Why Smartlight?
Street lighting is an important element of urban life. It consumes about 40% of the overall electricity cost of a city. In order to meet the energy consumption and cost reduction targets of cities, there is a need to replace existing old-style street lights with smart LED lighting systems that can be centrally controlled and monitored. Benefits that can be achieved with Smartlight:
• Energy savings up to 70%
• Return on investment cost in 1 to 2 years
• Fast and accurate fault detection
• Central control
• Easy installation and maintenance
PRODUCT FEATURES.
Technicial Specifications:
• LoRaWAN wireless communication infrastructure
License-free ISM band frequencies, 128 Bit AES encrypted secure communication, LoRaWAN infrastructure providing long communication distance are used.
• DALI LED control interface
LED control is provided with DALI standard

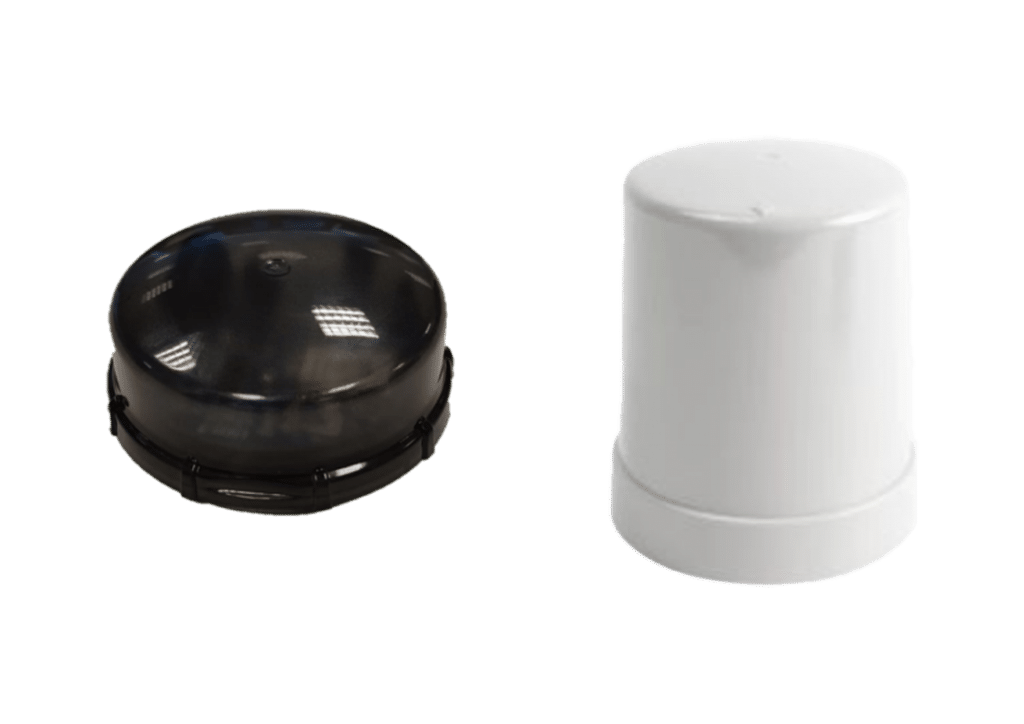

• Zhaga / NEMA connectors
Standard connection to luminaire with 4-pin Zhaga or 7-pin NEMA connector
• CE Certificate – IP67 Enclosure
IP67 protected enclosure with CE Certificate
• Ability to work on Local Server or Cloud
It can work on a closed system with local servers or on the cloud. With the local server solution, the data is kept only within the system and thus data security is ensured.
Functional Features:
• Easy and Useful Graphical Interface – Map usage
All system usage and reporting can be done on a simple and useful graphic screen. All luminaires in the system can be accessed via the map and controls can be made.
• Flexible Working Profiles
Precise time-based or automatically adjusted according to the sunrise / sunset lighting profiles can be created and assigned to each luminaire or collectively.
• Group or Single control
Different profiles can be assigned to each luminaire or a group.
• Detailed Reporting
Power consumption reports of the luminaires and the whole system are presented as graphics and tables. Production of different types of reports such as changes in energy consumption over time, error conditions and similar
• Error Detection
Errors in the system are immediately detected and reported.
• Inventory Management
Keeping all the detailed information of the fixtures, poles and lamps on the system from the production date to the maintenance periods shares up-to-date information about the inventory to the user.
• Maintenance Management
System maintenance follows incoming or approaching luminaires and warns the user. Which luminaire and which operations are applied are kept in detail in the system.
• Customized Settings
Precise Illumination level adjustment according to changes in Illuminance level due to cloud, weather and similar reasons.
Ability to run special profiles on holidays or special days
• 7/24 Working
It is designed to ensure that the system operates correctly 7/24 and for many years by taking measures at different levels against communication breakdowns and similar malfunctions that may occur in the system.
